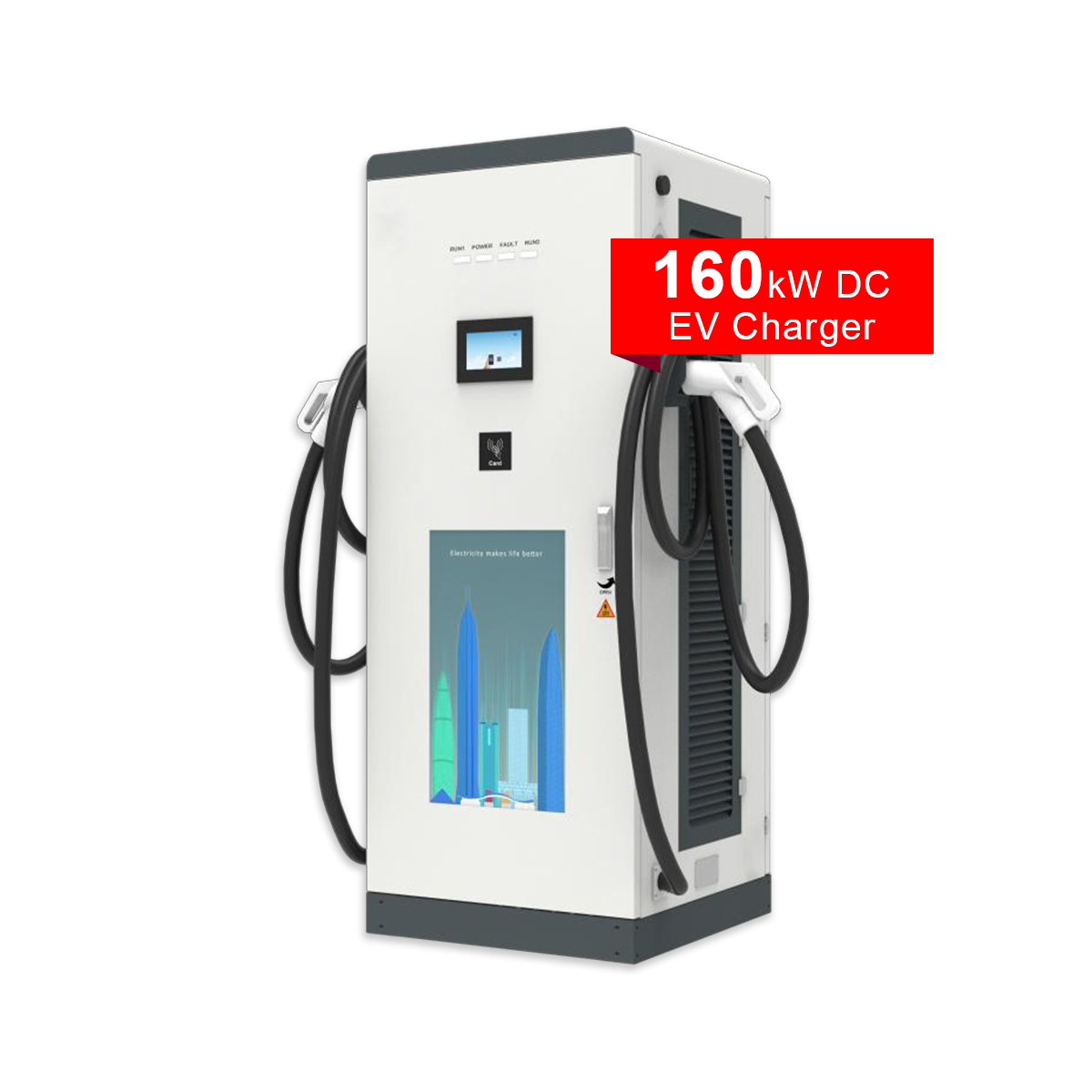

Commercial DC EV Charger 400V 120kW 160kW for Sale
Typical Applications:
Highway service stations, Fleet depots, Shopping malls
Warranty: 5-year core components, 24/7 technical support
160kW Ultra-Fast Charging – 10-30min Charge
Dual CCS2 Guns – Charge Two EVs Simultaneously
Liquid-Cooled Cables – Lightweight & Durable
OCPP 1.6J Compliant – Smart Load Management
Product Description
DC Fast Charging Station is designed to meet the growing demands of modern electric mobility. Whether for public charging networks, fleet operations, or commercial properties, this high-power solution delivers exceptional speed, reliability, and user convenience.
Ultra-Fast Charging
With a maximum output power of 160kW, this DC fast charger significantly reduces downtime. It can add up to 120 kilometers (75 miles) of range in just 10 minutes, making it ideal for highway rest stops, urban charging hubs, and busy commercial locations.
Dual-Gun Flexibility
Equipped with two CCS2 (or CCS1) charging guns, the station supports dynamic power distribution. It can charge two vehicles simultaneously, intelligently allocating power to optimize efficiency and throughput.
Wide Voltage Range
The charger supports a broad voltage range of 150V to 1000V, ensuring compatibility with all types of electric vehicles—from standard passenger cars (400V) to next-generation commercial EVs (800V), including buses and light trucks.
High Efficiency & Reliability
Designed for continuous operation, the system boasts a peak efficiency of up to 95%. With an IP54-rated enclosure (protection against dust and water splashes) and an IK10 impact rating, it is built to withstand harsh outdoor environments, from extreme heat to freezing winters.
Intelligent Management
The station comes with integrated 4G/5G, Ethernet, and Wi-Fi connectivity, allowing for seamless integration with the OCPP 1.6/2.0.1 protocol. Operators can remotely monitor real-time status, manage user authentication, perform over-the-air (OTA) firmware updates, and generate detailed usage reports.
User-Friendly Interface
A high-brightness 7-inch or 10-inch LCD touchscreen provides intuitive operation in multiple languages. Features include:
RFID card reader for authorized access;
Real-time charging status, cost display, and energy consumption data.
FAQ
Compatible EVs: Most modern EVs support DC fast charging, but speeds vary:
Full 160kW speed: High-voltage EVs (e.g., Tesla Model 3/Y, Porsche Taycan, Hyundai Ioniq 5, Kia EV6).
Lower speed (e.g., 50-100kW): Older or entry-level EVs (e.g., Nissan Leaf, Chevrolet Bolt).
Connector Types:
CCS (Combined Charging System) – Common in Europe & North America.
CHAdeMO – Used mainly by older Japanese EVs (e.g., Nissan Leaf).
Tesla Supercharger (with adapter) – Some Tesla models can use CCS.
Power Requirements:
Three-phase 400V/480V (industrial-grade supply).
High current (300A+) – Requires utility coordination for grid capacity.
Installation Challenges:
Heavy-duty cabling & cooling systems (liquid-cooled cables for high power).
Space & permits – Larger footprint than AC chargers; may need traffic planning.
160kW DC fast charger is a high-power electric vehicle (EV) charging station that delivers direct current (DC) electricity, bypassing the car’s onboard charger for much faster charging.
Charging Speed:
Adds 100-120 km (60-75 miles) of range in 5-10 minutes, depending on the EV’s battery and state of charge.
A typical 60kWh EV battery can charge from 20% to 80% in 20-30 minutes (vs. hours on AC chargers).
Best for: Highway rest stops, fleet depots, and urban fast-charging hubs.
