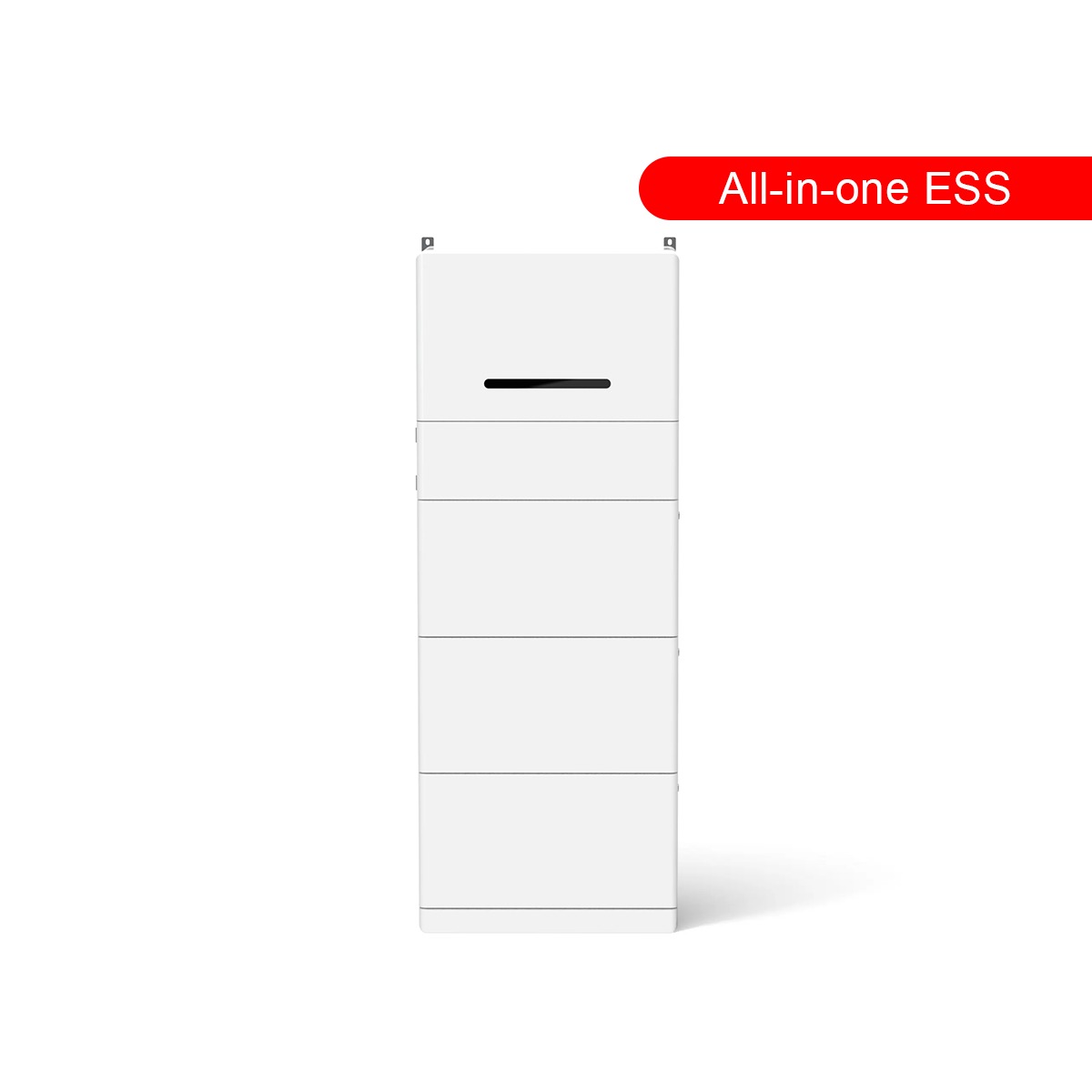

Complete Home All in One ESS 6kW 10kWh 15kWh
Plug-and-Play Installation: No separate battery rack, inverter or complex wiring;
Future-proof: Scalable capacity, parallel up to 30kWh;
Safe & Reliable: UL1973, IEC62619, CE certified;
Quiet Operation: Fanless cooling under low load, <30 dB noise
Product Description
All-in-One ESS 6kW / 15kWh – a compact, intelligent energy storage solution that seamlessly integrates a hybrid inverter and high-capacity battery into a single unit. Designed for residential and light commercial use, it optimizes self-consumption of solar energy, provides backup power during outages, and reduces electricity bills through smart energy management.
True All-in-One Design
Combines a 6kW hybrid inverter and a 15kWh LiFePO₄battery in one sleek enclosure. Pre-cabled and pre-configured for easy installation – saves space, time, and installation costs.
Powerful Performance
Rated AC Power: 6kW (supports continuous operation of essential home loads);
Battery Capacity: 15kWh usable energy (expandable up to 30kWh);
High Voltage Battery System for improved efficiency and lower losses;
Peak output handles surge loads from refrigerators, pumps, or AC units.
Intelligent Energy Management
Supports PV, grid, generator, and battery inputs;
Multiple operating modes: Self-consumption, Time-of-Use (TOU), Backup, and Grid Feed-in;
Built-in EMS (Energy Management System) for automated switching between sources.
Safety & Reliability
LiFePO₄battery with BMS protection (overcharge, over-discharge, short circuit, thermal runaway prevention);
IP65 rating for indoor or outdoor installation;
6,000+ cycles at 90% DoD – long lifespan with 10-year design life.
Smart Connectivity
Remote monitoring via iOS/Android App and web portal;
Real-time energy flow, historical data, and remote firmware updates;
Supports CAN/RS485 for communication with third-party devices.
Applications
Home backup power – keep lights, internet, fridge, and medical devices running during blackouts;
Solar self-consumption enhancement – store excess PV energy for nighttime use;
Peak shaving & TOU savings – charge from grid during off-peak rates, discharge during peak rates;
Off-grid / weak grid areas – works with generator input for complete energy independence.
FAQ
It means the hybrid inverter (6kW) and the battery storage (15kWh LiFePO₄) are integrated into a single cabinet. No external battery rack or separate inverter is needed – just connect solar panels, grid/generator, and your home loads.
Yes. You can use it as a standalone backup unit charged from the grid (or a generator). During off-peak hours, it charges from the grid and discharges during peak rates (time-of-use shifting) or provides emergency power during blackouts.
Yes. You can parallel up to two 15kWh battery units for a total usable capacity of 30kWh. The inverter remains 6kW, but runtime doubles. Expansion requires an additional battery cabinet and connection cables (sold separately).
