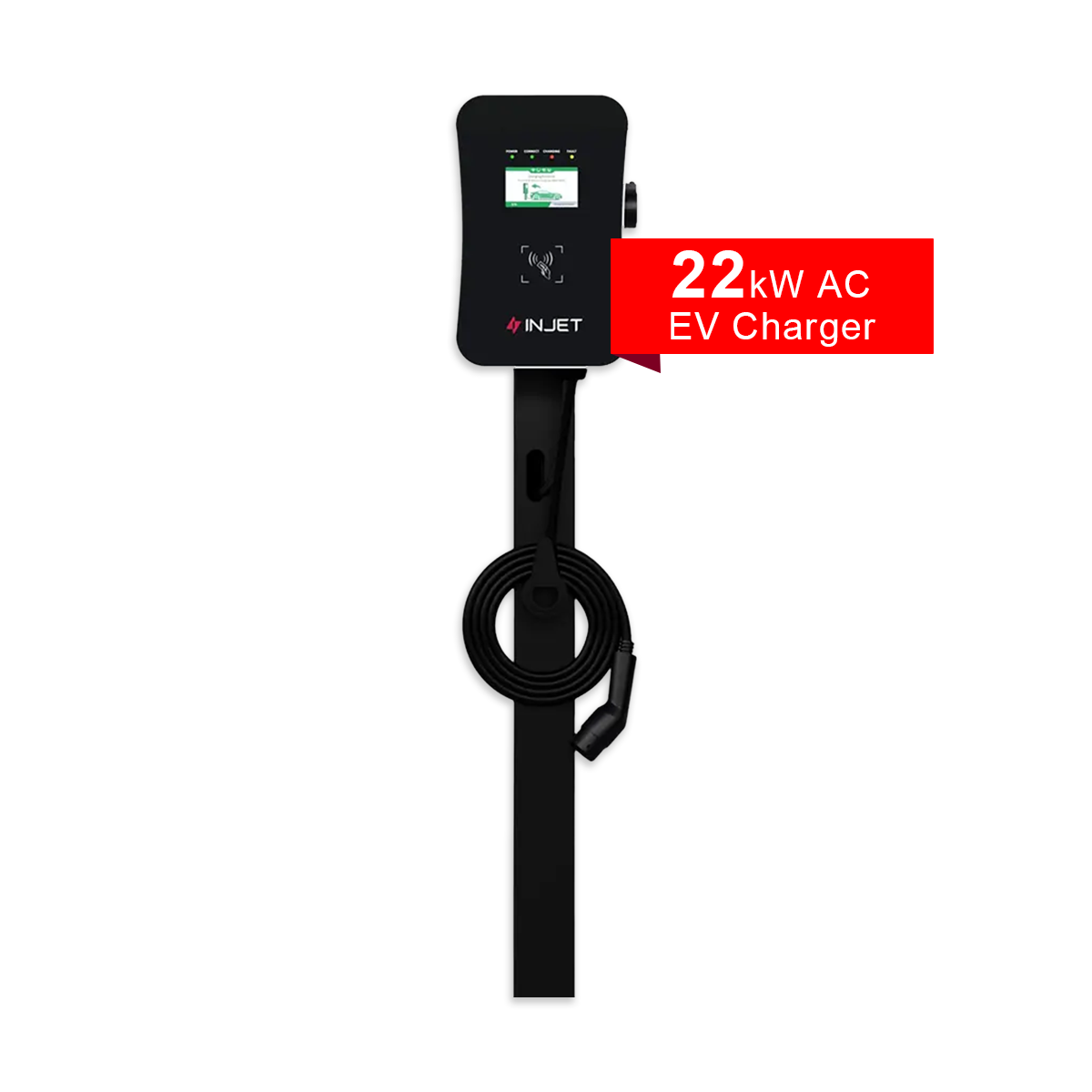

Home AC EV Charger 230V 400V 11kW 22kW for Sale
Typical Applications:
Residential charging, Workplace fleets, Hotels & shopping centers
Warranty & Support: 3-Year Warranty, 24/7 Remote Monitoring
11kW Fast Charging – Overnight Full Charge
Type 2 Socket – Universal EV Compatibility
Dynamic Load Balancing – Smart Grid Ready
IP65 Rated – All-Weather Protection
Product Description
11kW AC Wallbox Charger provides efficient and reliable charging for electric vehicles at home, workplaces, and commercial locations.
Designed for single-phase or three-phase power supply (230V/400V), it delivers 30-50km of range per hour, making it ideal for overnight charging
or daily top-ups.
Key Advantages:
Plug-and-Play Installation – Easy wall or pole mounting with pre-configured cables.
Smart Connectivity – WiFi/4G enabled for remote control via mobile app.
User-Friendly – RFID authentication, LED status indicators, and scheduling options.
Future-Proof – OCPP 1.6 compliant for integration with energy management systems.
Smart Features:
Dynamic Load Management – Adjusts power based on household demand.
Solar Compatibility – Optional PV integration for green charging.
Usage Reports – Track energy consumption via app.
Installation & Safety:
Compact Design – Fits garages, carports, and outdoor spaces.
Safety Certified – CE, IEC 61851, and surge protection.
Durable Build – UV-resistant casing for long-term outdoor use.
Note: Optional 22kW upgrade available. Compatible with all Type 2 EVs (Tesla, BMW, VW, etc.).
FAQ
11kW AC charging station is an electric vehicle (EV) charger that delivers up to 11 kilowatts of power using alternating current (AC). It is commonly used for home, workplace, or public charging.
Charging Speed:
An 11kW charger can add 40-50 km (25-30 miles) of range per hour, depending on the EV’s onboard charger capacity.
A typical 60kWh EV battery takes 5-6 hours to charge from empty to full.
Voltage & Phase:
Three-phase (400V, 16A) – Common in commercial and industrial settings (EU/UK/Asia).
Single-phase (230V, 32A or 48A) – Some regions (like the US) may use higher amperage for 11kW.
Installation:
Requires a certified electrician to ensure proper wiring, circuit protection, and compliance with local regulations.
Yes, but charging speed depends on the EV’s onboard charger:
Full 11kW speed: EVs with 11kW+ onboard chargers (e.g., Tesla Model 3, Porsche Taycan, Audi e-tron).
Lower speed (e.g., 7.4kW or 3.7kW): EVs with smaller onboard chargers (e.g., Nissan Leaf, Renault Zoe).
Compatibility:
Uses Type 2 (Mennekes) connector (EU/UK standard) or J1772 (North America).
Most EVs support smart charging (scheduling, app control).
