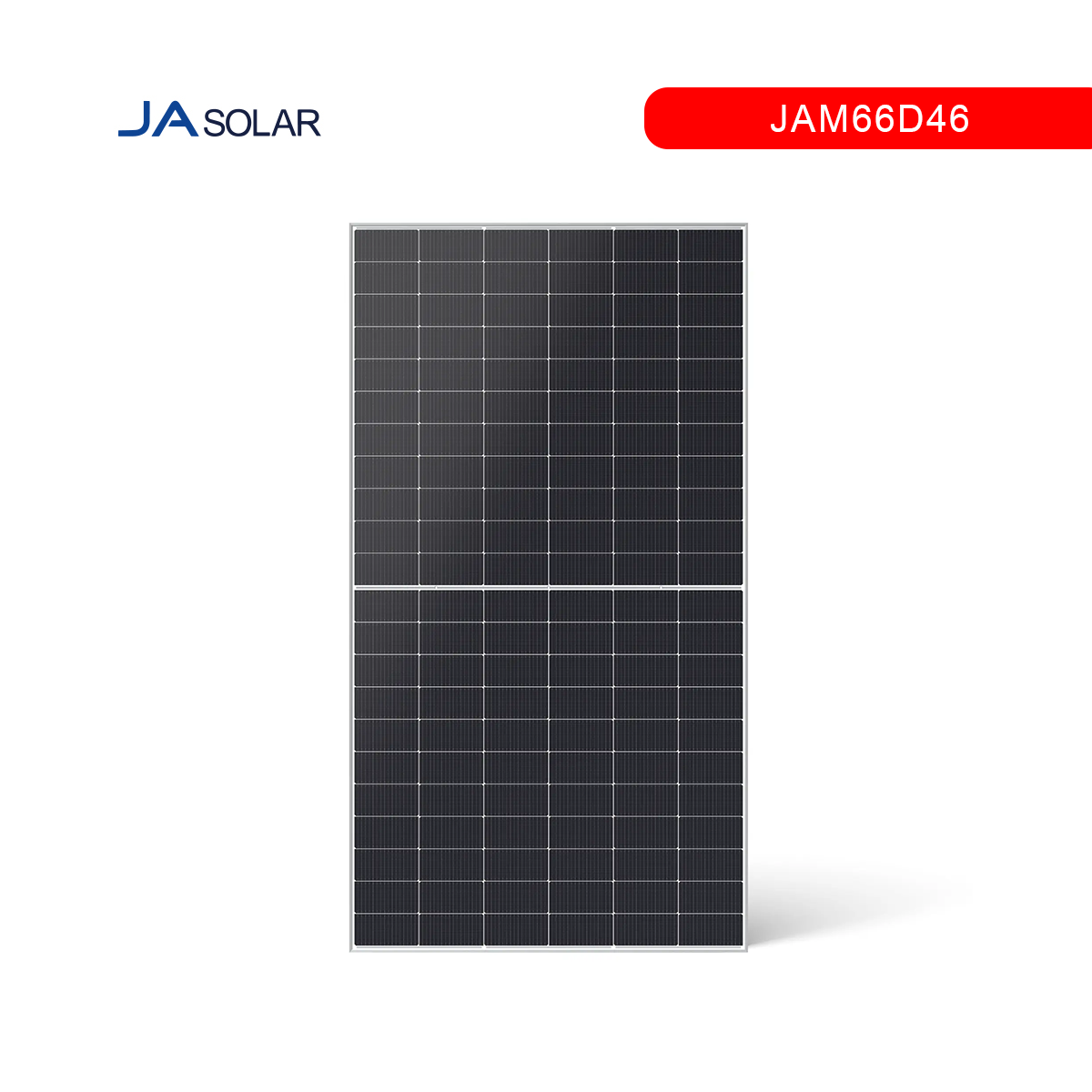

JA Solar JAM66D46 series, part of the innovative Deep Blue 4.0 Pro family, represents the cutting edge of photovoltaic technology. Designed for large-scale utility projects, commercial and industrial (C&I) rooftops, and ground-mounted power plants, this module combines high power output with exceptional reliability. By leveraging advanced N-type TOPCon (Tunnel Oxide Passivated Contact) cell technology and a bifacial dual-glass construction, the JAM66D46 series is engineered to deliver superior energy yield and a lower Levelized Cost of Energy (LCOE) .

Advanced N-Type TOPCon Technology
Moving beyond traditional PERC cells, the JAM66D46 utilizes N-type TOPCon technology. This provides several critical performance benefits:
Very Low Light-Induced Degradation (LID): N-type cells are inherently resistant to LID, ensuring higher power output from the very beginning of the system‘s life.
Improved Temperature Coefficient: With a temperature coefficient of Pmax at -0.29%/°C, the module performs exceptionally well in hot climates, generating more power on high-temperature days compared to standard p-type modules.
Excellent Low-Light Performance: Optimized response in low-light conditions (morning, evening, and cloudy days) extends the productive hours of the solar plant.

Bifacial Dual-Glass Design
The module features a transparent 2.0mm tempered glass on both the front and back . This design offers dual advantages:
Harvest Energy from Both Sides: The bifacial capability allows the rear side to capture albedo (reflected light) from the ground or roof surface, boosting total energy yield by up to 85% depending on the installation conditions.
Enhanced Durability: The symmetrical glass-glass construction provides superior protection against mechanical stress, moisture ingress, and harsh environmental conditions. It is tested to withstand snow loads of up to 5400 Pa and wind loads of up to 2400 Pa.

Quality and Reliability
JA Solar is a Tier-1 bankable manufacturer, and the JAM66D46 series is built to the highest international standards.
Certifications: The module is certified according to IEC 61215 and IEC 61730, and JA Solar operates under strict quality management systems including ISO 9001, ISO 14001, and ISO 45001.
Warranty: Product Warranty: 12 years. Linear Performance Warranty: 30 years.
Degradation Rate: The module guarantees a first-year degradation of only 1% and an annual degradation of just 0.4% thereafter, ensuring at least 87.4% of nominal power output remains after 30 years.
