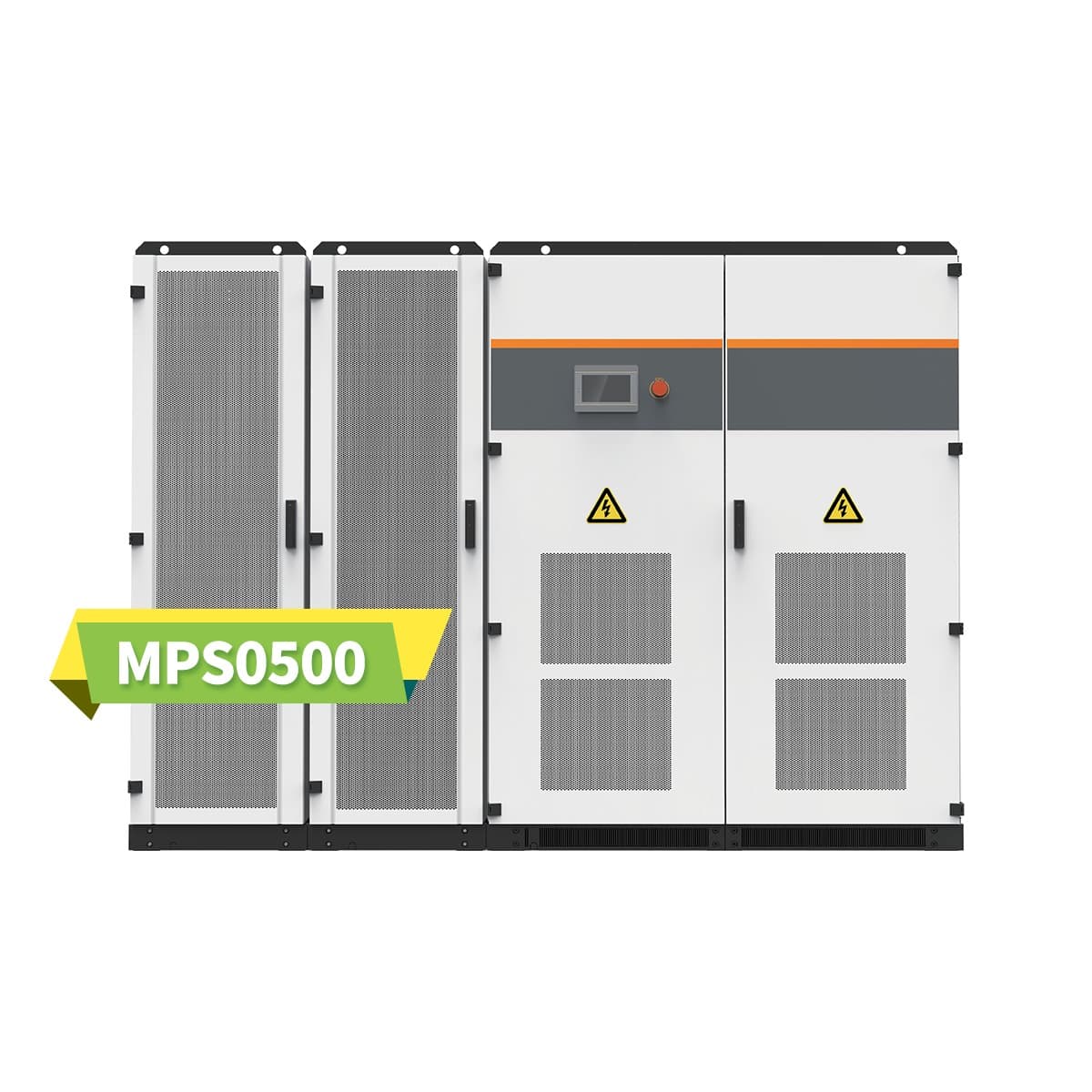

Megarevo MPS0500 500kW Three Phase Hybrid Inverter for Industrial Microgrid Solution
Integrated MPPT module/transformer/STS/maintenance bypass;
Support DG load rate control to improve fuel economy;
Support 100% unbalance;
Support flexible configuration of control strategies;
Support parallel connection of multiple machines.
Product Description
Megarevo MPS0500 is a high-power, industrial-grade hybrid inverter designed for large-scale commercial, industrial, and microgrid applications. With a rated output of 500kW and maximum efficiency reaching 99.5%, this advanced energy conversion platform integrates PV generation, battery storage, and grid interaction into a unified intelligent system. Engineered for demanding environments—from remote mining operations and off-grid islands to industrial facilities and utility-scale projects—the MPS0500 delivers the reliability, scalability, and flexibility required for modern energy infrastructure.
Key Features & Benefits
All-in-One Hybrid Architecture
The MPS0500 combines PV controller, battery inverter, and grid-tie/off-grid switching capabilities into a single, integrated unit. This “three-in-one” design simplifies system architecture, reduces installation complexity, and minimizes equipment footprint.
Exceptional Power Performance
Rated Power: 500 kW;
Max Output Power: 550 kVA (on-grid & off-grid);
Overload Capacity: 110% continuous, 120% for 1 minute;
High Efficiency: Up to 99.5% peak efficiency maximizes energy yield and ROI.
Flexible PV & Battery Configuration
PV Input: Max 1,000V DC input voltage, supporting up to 600–720kW PV power with 10 MPPT trackers for optimized solar harvesting;
Battery Compatibility: Wide battery voltage range (500–850V) with max charging power of 600–720kW, supporting multiple BMS protocols (RS485, CAN) for seamless integration.
Advanced Microgrid Capabilities
100% Unbalanced Output: Capable of handling single-phase and three-phase loads simultaneously, ensuring stable power supply even under uneven load conditions;
Generator Compatibility: Supports diesel generator integration with load rate control to improve fuel economy;
Black Start Capability: Enables system restart without grid support, essential for off-grid and island applications.
Scalable & Modular Design
The MPS0500 supports parallel operation of multiple units, enabling system expansion from 500kW to multi-megawatt configurations to meet growing energy demands.
Intelligent Monitoring & Control
7-inch LCD touchscreen for local operation;
Remote monitoring via Cloud EMS, Web interface, RS485, and TCP/IP;
Comprehensive data analytics for simplified maintenance and performance optimization.
Applications
Megarevo MPS0500 is ideally suited for:
Large-Scale Microgrid Systems: Remote villages, islands, and areas with unstable grid infrastructure;
Industrial & Mining Operations: Off-grid mines and heavy industrial facilities requiring reliable backup power;
Commercial & Industrial Facilities: Factories, commercial buildings, and business parks seeking energy cost optimization and backup resilience;
Utility-Scale Energy Storage: Integration with battery storage containers for grid stabilization and peak shaving.
FAQ
Yes, it is a true hybrid inverter. The MPS 500kW supports both on-grid and off-grid operation with seamless automatic switching. If the main grid voltage or frequency becomes abnormal, the inverter will switch to off-grid (islanding) mode in less than 20ms, ensuring a continuous power supply to connected loads without interruption.
Yes, it supports 100% unbalanced output. This is a critical feature for off-grid and microgrid systems where single-phase loads may be connected unevenly across the three phases, ensuring stable power delivery regardless of the load imbalance.
The inverter is compatible with high-voltage lithium batteries, typically within a voltage range of 500V to 950V. It supports standard BMS communication protocols, including RS485 and CAN, allowing for seamless integration and intelligent battery management with most major battery brands.
