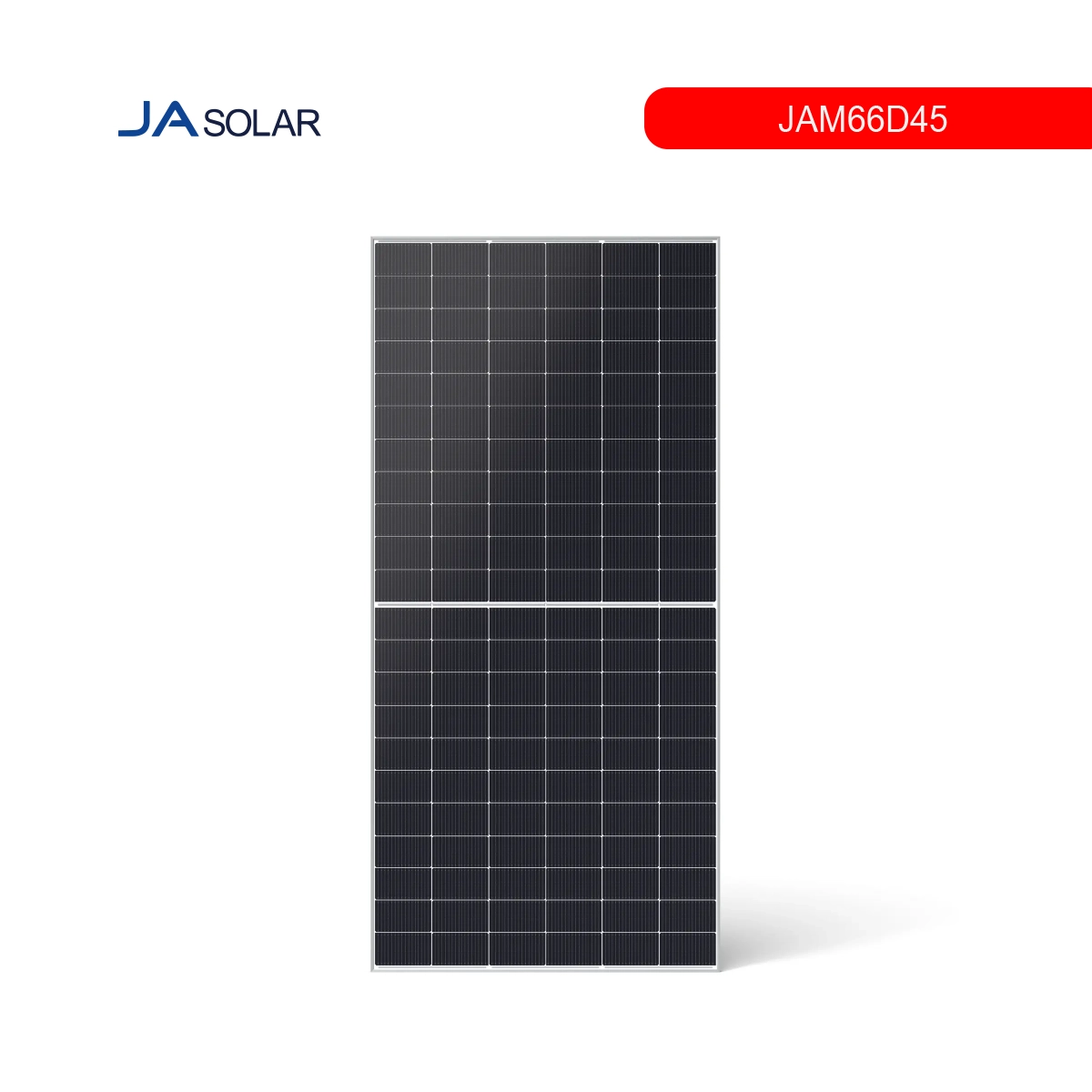

JA Solar JAM66D45 series, a key model within the advanced DeepBlue 4.0 Pro family, is a high-performance photovoltaic module engineered for a wide range of applications, including commercial and industrial (C&I) rooftops, large-scale ground-mounted power plants, and utility projects. By integrating cutting-edge N-type TOPCon (Tunnel Oxide Passivated Contact) cell technology with a bifacial dual-glass construction, this module delivers superior energy yield, exceptional reliability, and a reduced Levelized Cost of Energy (LCOE).

Advanced N-Type TOPCon Cell Technology

Moving beyond conventional PERC cells, the JAM66D45 utilizes N-type TOPCon technology (also referred to as Bycium++ cells), which provides significant performance benefits:

Very Low Light-Induced Degradation (LID): N-type cells are inherently resistant to LID, ensuring the module operates at near-peak capacity from the moment of installation, with a first-year degradation of only 1%.

Superior Temperature Coefficient: With a temperature coefficient of Pmax at -0.29%/°C, the module maintains higher power output in hot climates, outperforming standard p-type modules on high-temperature days.

Excellent Low-Light Performance: The technology is optimized for superior response in low-light conditions, such as cloudy mornings and hazy afternoons, effectively extending the productive hours of the solar plant.

Bifacial Dual-Glass Design

The module features a robust construction with 2.0mm tempered glass on both the front and back. This design offers two major advantages:

Harvest Energy from Both Sides: The bifacial capability allows the rear side to capture albedo (reflected light) from the ground, roof, or snow, boosting total energy yield and improving overall system efficiency.

Enhanced Durability and Reliability: The symmetrical glass-glass structure provides superior protection against mechanical stress, moisture ingress, and harsh environmental conditions. It is rigorously tested to withstand snow loads of up to 5400 Pa and wind loads of up to 2400 Pa, ensuring long-term performance in diverse climates.

Advanced Cell Architecture

The JAM66D45 incorporates half-cell and multi-busbar (MBB) technologies:

Half-Cell Configuration: The 132 half-cells (arranged in a 6×22 matrix) reduce internal resistive losses and improve current collection. This design also enhances shading tolerance, minimizing the impact of partial obstruction on energy output.

Multi-Busbar (MBB) Technology: The use of 16 busbars shortens the current travel path within the cell, leading to lower series resistance, better power collection, and improved reliability.

Quality and Reliability

As a Tier-1 bankable manufacturer, JA Solar ensures the JAM66D45 series meets the highest international standards for quality and performance.

Certifications: The module is certified according to IEC 61215 and IEC 61730, and JA Solar operates under strict quality management systems including ISO 9001, ISO 14001, and ISO 45001. The module’s “Top Performer” status from PVEL further validates its exceptional reliability.

Warranty: Product Warranty: 12 years. Linear Performance Warranty: 30 years.

Degradation Rate: The module guarantees a first-year degradation of only 1% and an annual degradation of just 0.4% thereafter, ensuring at least 87.4% of nominal power output remains after 30 years.
